Does Your Bournemouth Home Need a Consumer Unit Upgrade? 5 Warning Signs

Your consumer unit is the heart of your home's electrical system. It controls power distribution and protects against faults. Most Bournemouth homes built before 2008 have outdated units that don't meet current safety standards.

We work across Bournemouth, Boscombe, Charminster, and surrounding areas. Our team sees the same warning signs repeatedly during domestic callouts. Here's what to look for.

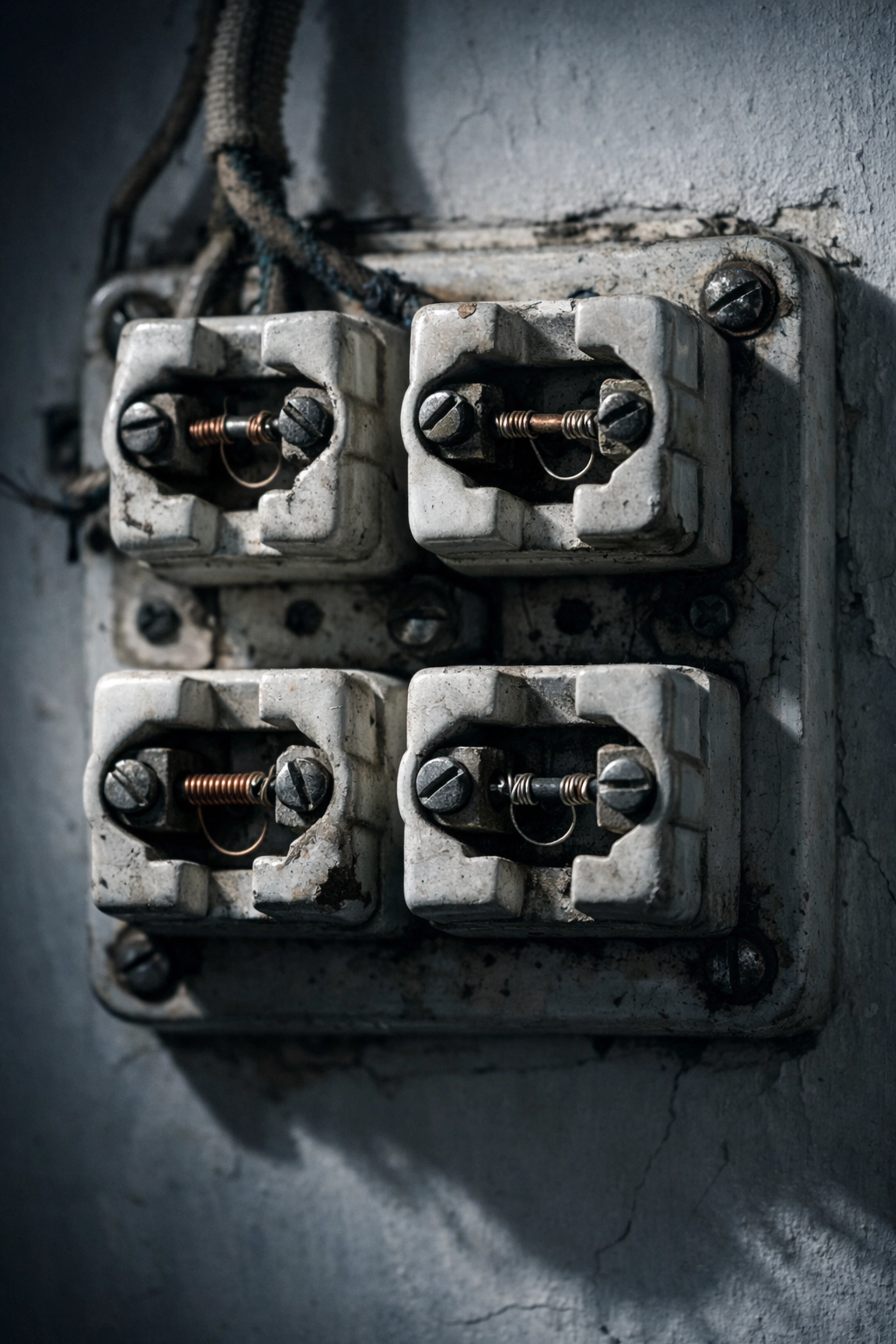

1. Your Fuse Box Still Uses Wire Fuses

Wire fuses are obsolete. If your consumer unit requires replacement fuse wire when circuits blow, it's decades out of date. Modern units use miniature circuit breakers (MCBs) that flip off automatically and reset with a switch.

Wire fuse systems don't provide adequate protection for today's electrical loads. They're slower to react during faults and create fire risk. Any Bournemouth property with a fuse wire board needs upgrading to current 18th Edition standards.

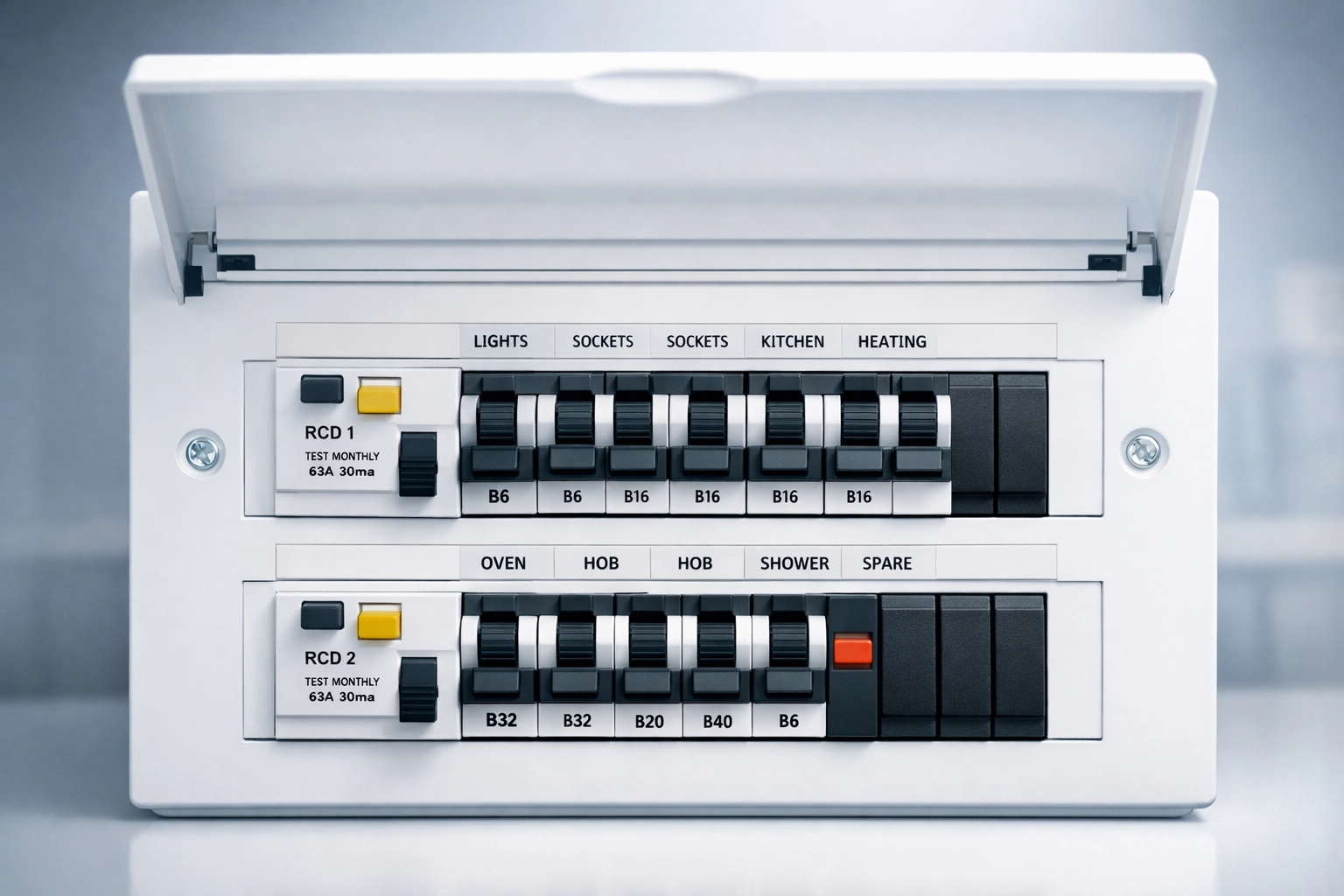

2. No RCD Protection on Your Circuits

Residual Current Devices (RCDs) shut off power in milliseconds when they detect earth leakage. They're mandatory on modern consumer units. Older boards either have no RCD protection or a single RCD covering all circuits.

Current regulations require dual RCD or RCBO protection. RCBOs combine overcurrent and earth fault protection on individual circuits. If one trips, the rest of your home keeps power. Properties in Canford Cliffs, Branksome Park, and across Bournemouth built before 2008 typically lack this protection.

Your electrician bournemouth should verify RCD presence and test functionality during periodic inspections.

3. Burning Smells or Scorch Marks Around the Unit

Black marks, burn marks, or scorching around your consumer unit indicate serious overheating. This happens from loose connections, overloaded circuits, or deteriorating components. Any burning smell requires immediate attention.

We respond to these calls regularly across Bearwood and County Gates. Overheating creates fire risk. Never ignore scorch marks or unusual odours from your electrical panel. Switch off at the main isolator and contact a qualified electrician immediately.

Crackling or buzzing sounds from the unit also suggest internal arcing or connection failure.

4. Circuits Trip Frequently or Lights Flicker

Regular tripping indicates either overloaded circuits or a failing consumer unit. Modern households run significantly more electrical equipment than systems designed 20+ years ago. Old units can't handle the load.

Flickering lights point to loose connections or inadequate circuit capacity. If tripping happens after rain, you likely have earth leakage issues requiring urgent investigation. Our team conducts fault-finding across Boscombe, Ashington, and Canford Heath to identify root causes.

Nuisance tripping disrupts daily life and signals underlying electrical problems that worsen over time.

5. Your Consumer Unit Is Over 20 Years Old

Consumer units installed before 2000 don't meet current safety standards. They lack RCD protection, use outdated components, and weren't designed for modern electrical demands. Even units from 2000-2008 often require upgrading.

The 18th Edition Wiring Regulations introduced stricter requirements for RCD protection, surge protection, and circuit segregation. Properties across Bear Cross, Canford Magna, and central Bournemouth commonly have aging boards that fail current compliance checks.

Consumer unit lifespan is approximately 25-30 years. After this, internal components deteriorate and protection mechanisms become unreliable.

When to Upgrade Your Consumer Unit

Beyond the warning signs above, several situations require consumer unit replacement. Planning a kitchen or bathroom renovation means updating circuits to current standards. Installing an EV charger requires a modern board with adequate capacity and proper earthing.

Landlords conducting EICRs (Electrical Installation Condition Reports) frequently discover consumer units rated C2 or C1 for non-compliance. These require remedial work before rental properties pass inspection. Our electrician bournemouth team handles commercial and domestic EICR work throughout Dorset.

Adding circuits for home offices, extensions, or outbuildings often reveals existing boards at full capacity with no spare ways.

What Happens During a Consumer Unit Upgrade

Consumer unit replacement takes 4-6 hours depending on property size and circuit complexity. We isolate the main supply, remove the old board, and install a compliant unit with appropriate RCDs or RCBOs. All circuits are tested for polarity, earth continuity, and insulation resistance.

You'll receive an Electrical Installation Certificate confirming the work meets BS 7671 standards. The property remains without power during installation. We work across Bournemouth to minimize disruption and complete upgrades efficiently.

Modern consumer units include surge protection devices (SPDs) to protect sensitive electronics from voltage spikes. They're now required under 18th Edition regulations for most installations.

Don't Wait for an Electrical Fire

Electrical fires cause significant property damage and risk to life. Outdated consumer units are a leading cause. The warning signs listed above indicate your Bournemouth home needs professional assessment.

We're qualified electricians working across Bournemouth, Poole, and surrounding areas. Our team conducts consumer unit upgrades in compliance with current wiring regulations. Contact us for a property assessment or to book your upgrade.

Electrical safety isn't something to postpone. If your consumer unit shows any of these warning signs, get it checked now.
